What is this part and where does the pipe go?

1 reading
92 views 5 replies 4 participants last post by  Stringman
#1 ·
Hi all
Fitting the AF xied I had to move the ecu and a few other bits to get access to the connector.

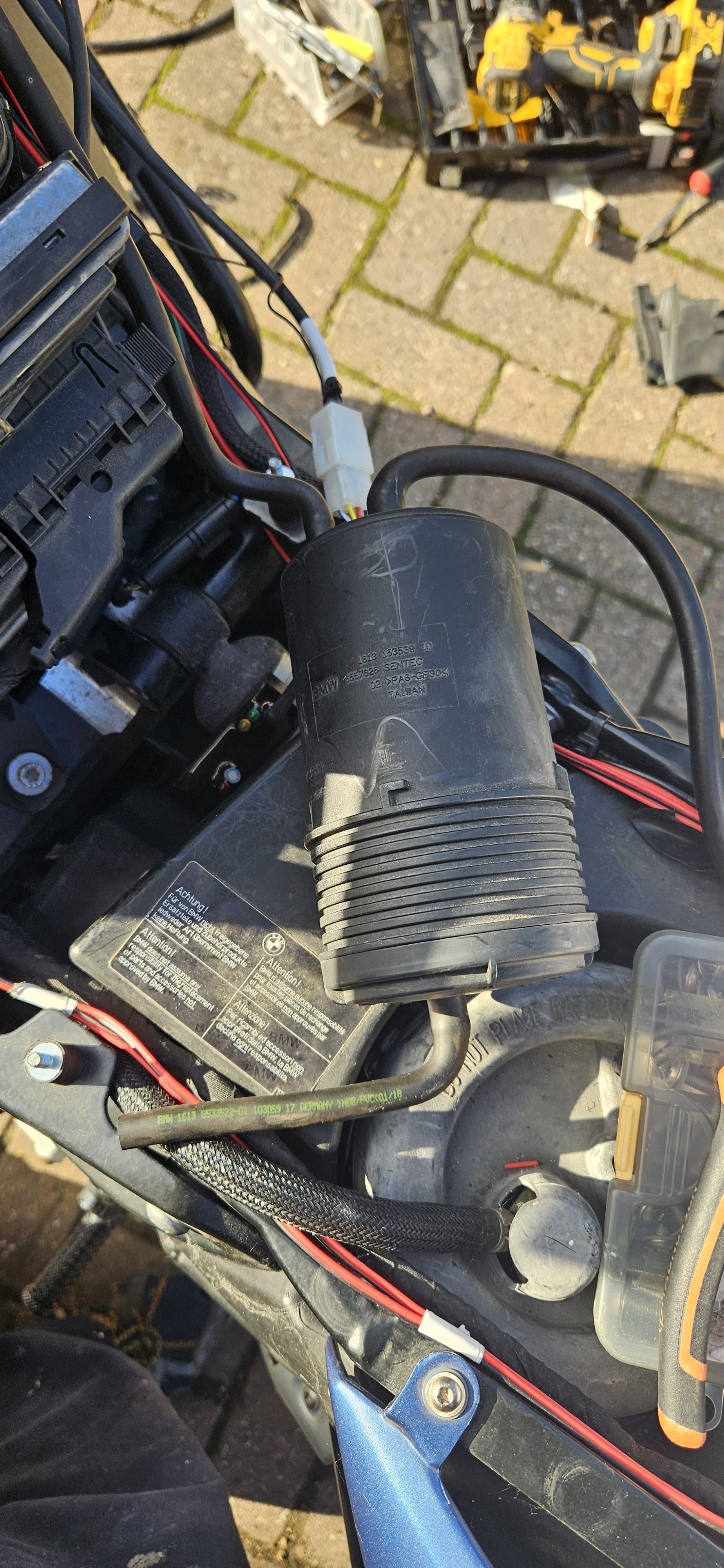

In front of the ECU is a plastic cylinder as in the photo.
When I moved I noticed that one of the pipes (on the left hand side had possibly been disconnected.
The two pipes on the right (connected) say purge and tank. the one on the right (not connected says air.
Anyone have any idea what the part is and if the pipe does connect to anything?
Thanks in advance


Attachments

#2 ·
That looks like the charcoal canister to me. It should be connected to the fuel tank breather and the FI air intake hose so that when the bike is started it can suck out fuel gases from the canister and into the fuel injection's air intake system.

#4 ·
